  OT TABLE
-----------------------------------------------------------------------------------------------------------------------------------

TI-GMHL

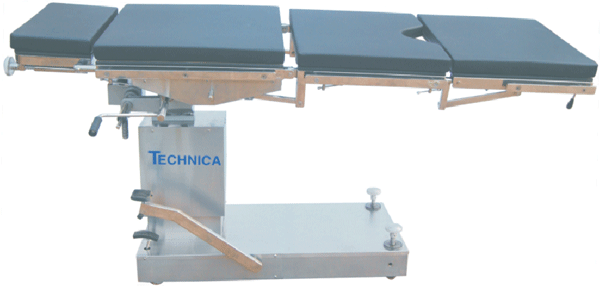

C-Arm Compatible hydraulic O.T. Table


This O.T table is four sectional with radio-translucent High pressure laminated table top suitable for image intensifier. The table has sturdy base, eccentric column made up of Stainless steel, antibacterial and is easy to clean. Height adjustment can be controlled hydraulically with the help of foot padel and rest positions i.e. trendelenburg, reverse trendelenburg, lateral tilt, flex and reflex manually. Head and leg sections are interchangeable and de-attachable. This O.T Table is suitable for all kind of surgeries, i.e. general surgery, vascular surgery, cardio, neurology, urology, gynecology, proctology, laparoscopy, traumatic surgery, plastic surgery and other surgeries. The table is specially designed for ortho and neuro attachment to support a patient in correct positions for various surgical procedures.


Technical Data
Length of Table Top
1900mm
Width of Table Top (without railing)
520 mm
Height Adjustment
(without mattress)
Min. 760 mm
Max. 1060 mm
Trendelenburg
200
Reverse Trendelenburg
200
Lateral Tilt (both side)
150
Back Section (up)
700
Back Section (down)
400
Leg Section
0-900
Head Section (up/down)
450
Floor Locking System
Manual
Kidney Bridge
On Request
