OT
TABLE
-----------------------------------------------------------------------------------------------------------------------------------
|
|
TI-SDz |
|

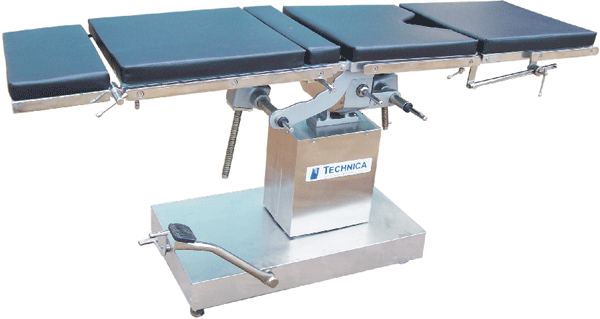

Hydraulic
O.T. Table |
|
|
|
|
|
This
O.T table is
four sectional with sturdy
base, column made up of Stainless
steel, antibacterial and is
easy to clean. positions for
different phases of surgery.
Height adjustment can be controlled
hydraulically with the help
of foot padel and rest positions
i.e. trendelenburg,
reverse trendelenburg, lateral
tilt, head and back section
up & down. Its open design
offers fast and easy manoeuverability
and providing correct and
ideal positions. Head and
leg sections are interchangeable
and de-attachable. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Technical
Data |
Length
of Table Top |
1900mm |
Width
of Table Top (without
railing) |
520
mm |
Height
Adjustment
(without mattress) |
Min.
760 mm
Max. 1060 mm |
Trendelenburg |
250 |
Reverse
Trendelenburg |
250 |
Lateral
Tilt (both side) |
200 |
Back
Section (up) |
750 |
Back
Section (down) |
200 |
Leg
Section |
0-900 |
Head
Section (up/down) |
900 |
Floor
Locking System |
Manual
/Foot Padel |
Kidney
Bridge |
On
Request |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
